PWM dimming controllers in a plastic housing (IP20) with 312W, a constant voltage (CV), an optimized output curve, a memory function and a PWM frequency of 300Hz. These devices are suitable for LED drivers, are dimmable in a range between 0,1 to 100% and comply with EN61347-1 as well as EN55032. They have a 3 in 1 dimming function (analog 0 to 10V, 10kOhm potentiometer and normally-open push-button) as well as a DMX interface (DLM1248-1CV-DMX) and can be configured for a minimum dimming value and fade in/out. We offer the following types of this Dalcnet series: DLM1224-1CV and DLM1248-1CV-DMX.

• single output
• output: 240 to 312W
• input voltage:12 to 48V DC (DLM1248_)
• operating temperature: -10 to +40°C

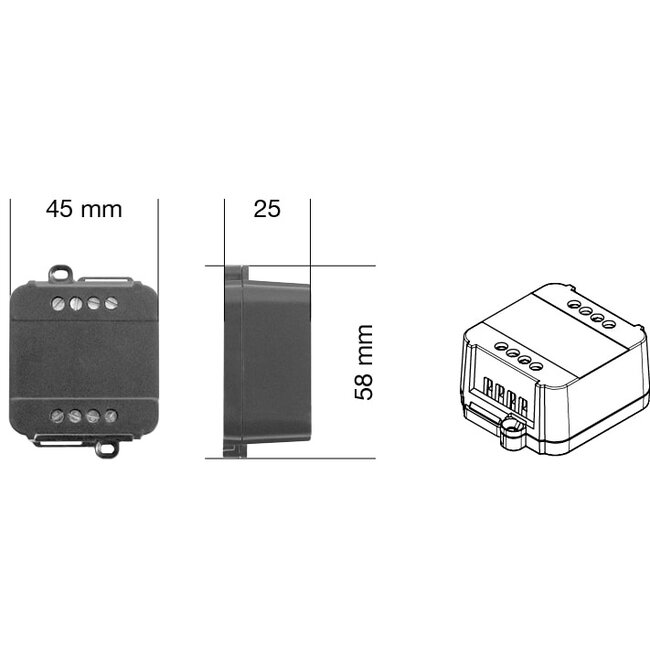

• dimensions: 44x57x25mm
• weight: 43g \
• technische data.
• Other models available on request.
