Led power supply for independent use that can work according to the identification of the load with output at constant voltage of 5Vdc and max 600mA or at constant current of 700mA and voltage of 2.5-5Vdc. To CV loads connected in parallel and to DC loads connected in series. Class II. Protection against open circuit, short circuit, over load and over temperature. Automatic reset in case of failure.
Technical specifications

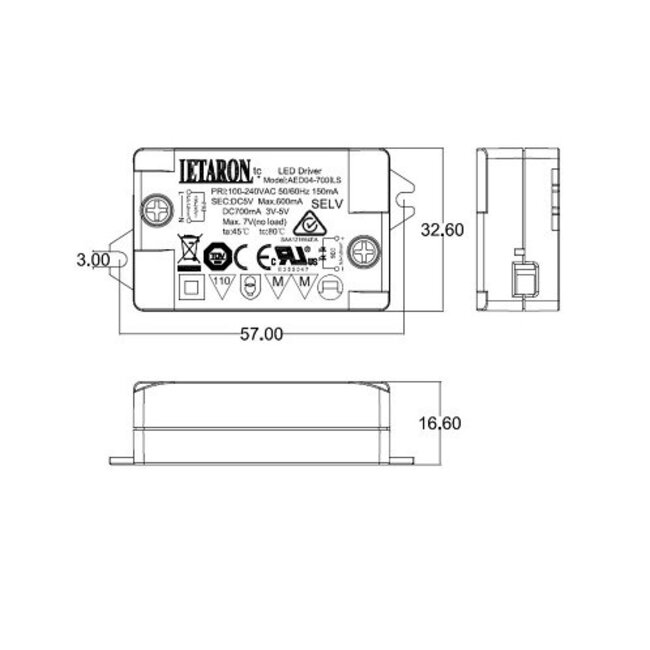

- Length (mm): 51,5 Width (mm): 32,8 High (mm): 17
- Colour: White
- Voltage In (Vac): 100~240
- Voltage Out (Vdc): 3~5
- Intensidad Out (A): 0.7
- Frecuency (Hz): 50~60
- Power (W): 2~3.5
- Room Temperature (°C): +45
- Critical Temperature (°C): 80
- Ingress Protection: IP20
- Power factor: 0.5
