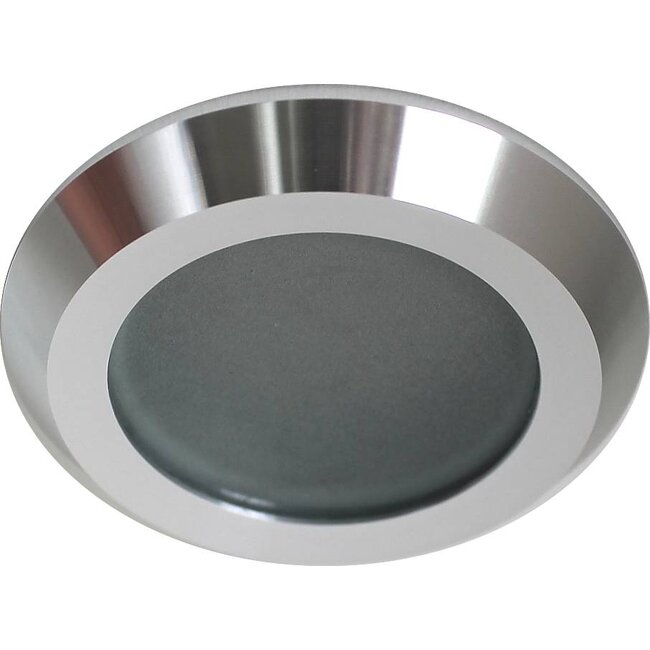

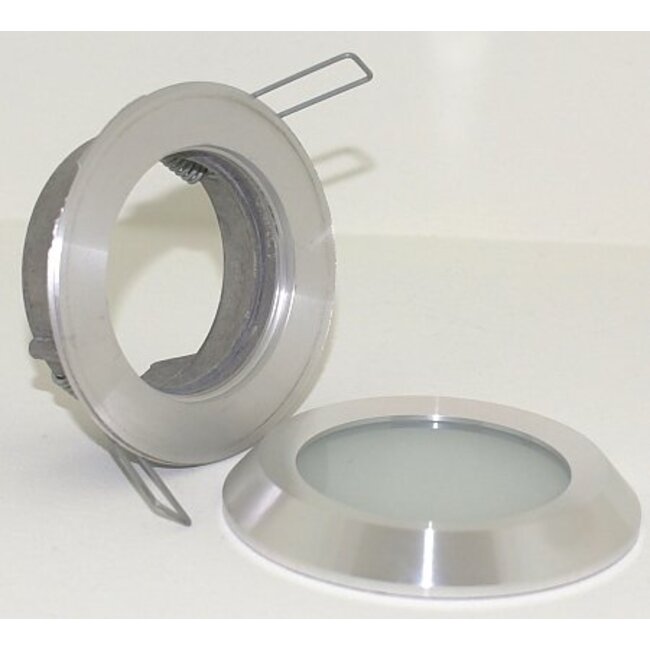

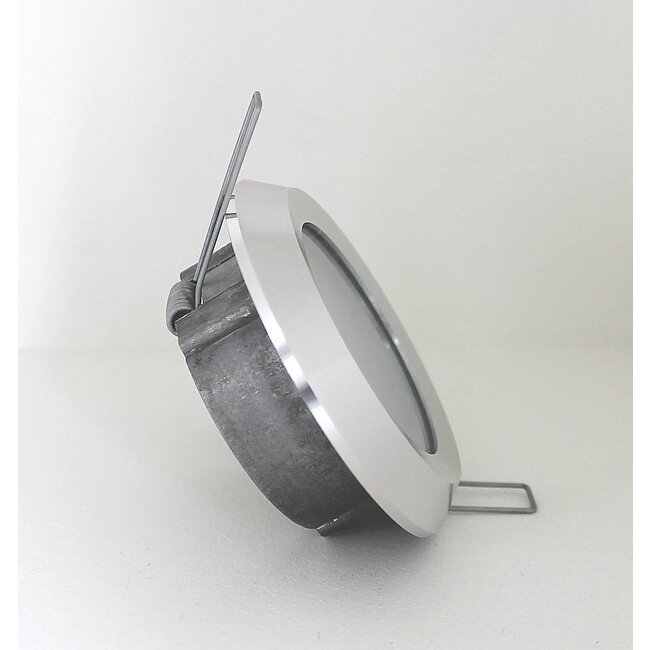

Recessed luminaire for use in the bathroom and outside. If you combine this bathroom with LED lamps, you will not only have a very nice spot, but also an economical one. The twisted aluminum lid of the spot is nicely shaped and has a luxurious but quiet appearance. With two clamp springs, this IP44 / 65 bathroom recessed spot is mounted in a suspended ceiling.

• Sealing class is IP65 Water-proof and dust-proof.
• For more information about the zone layout you can read here.
• Maximum power of 35 Watt.
• Suitable for type light sources MR16 12v GU5.3 and 230v GU10 LED lamp.
• Supplied with 12V gu5,3 or GU10 230v lamp holder
• Spot is NOT tiltable
• Supplied without light source
• Dimmable in combination with a dimmable light source

ASSEMBLY MANUAL

DIMENSIONS:
Diameter: 85mm
Mounting hole: 65mm
Installation height: from 65mm *

* There are different sizes of LED light sources. The installation height of the luminaire is determined by the light source used.
