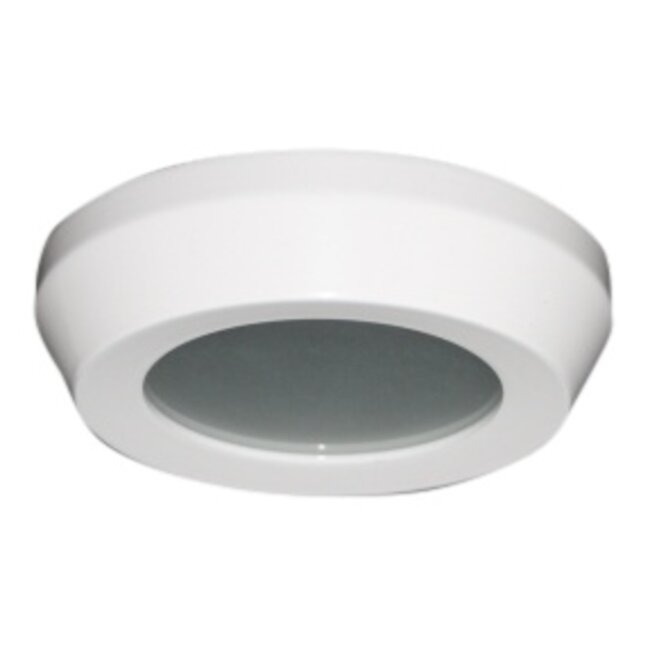

Recessed downlight for bathrooms suitable for 12v or 230v LED lamps. This beautiful finished spot is easy to place. By means of 2 clip springs you can easily mount this downlight in a suspended ceiling. The light source is easy to replace because the lid of the spot can be loosened! You do not have to remove the entire recessed spot from the ceiling. Because this bathroom pot is tiltable you can also focus on a spot where more light is needed. This is also useful if your ceiling is slanted

• Sealing class is IP65 Water-proof and dust-proof.
• For more information about the zone layout you can read here.
• Maximum power of 50 Watt.
• Suitable for type of light sources MR16 12v GU5.3 and 230v GU10 LED light.
• Supplied with 12V socket or GU10 230v lamp holder
• Spot is tiltable up to 30 °
• Supplied without light source
• Dimmable in combination with a dimmable light source

ASSEMBLY MANUAL

DIMENSIONS:
Diameter: 90mm
Mounting hole: 74mm
Installation height: from 75mm *

* There are different sizes of LED light sources. The installation height of the luminaire is determined by the light source used.
