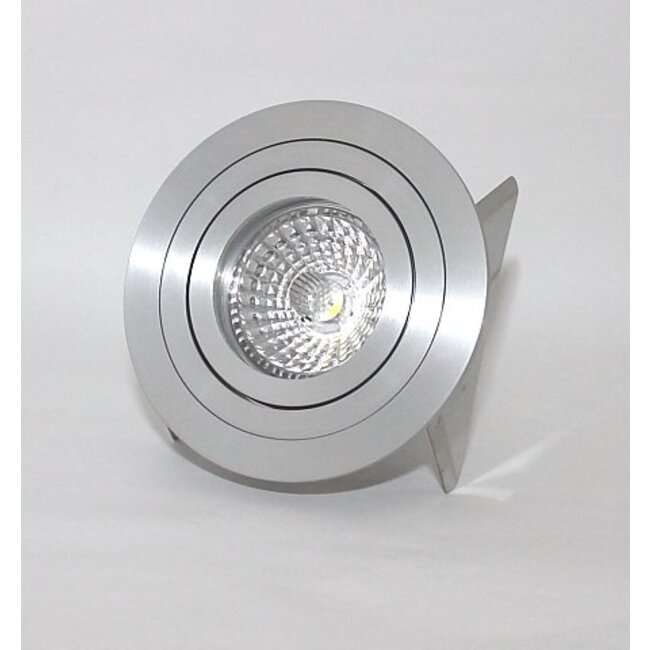

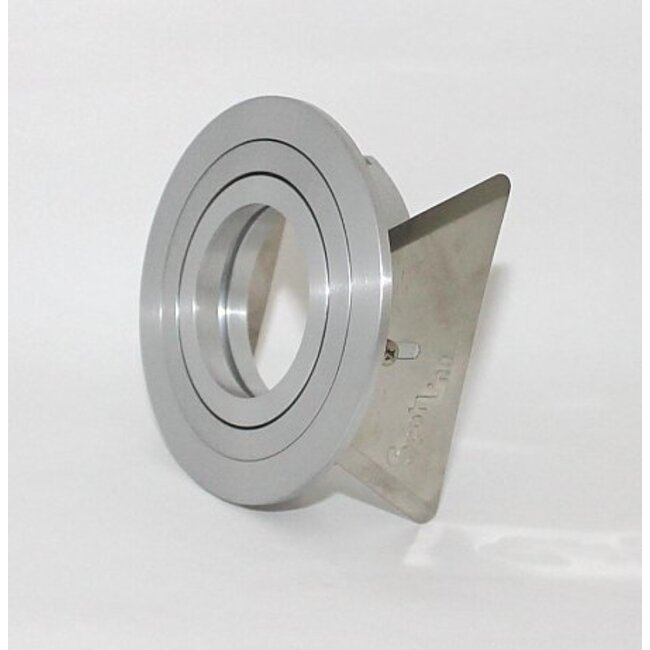

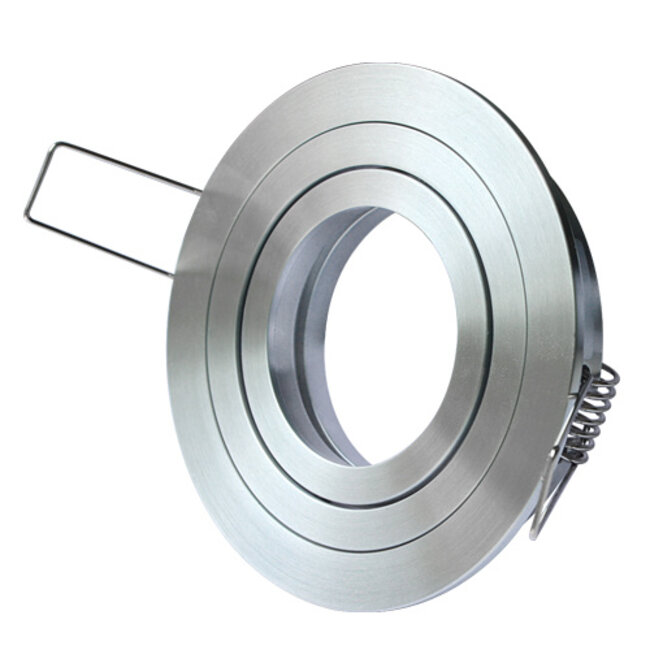

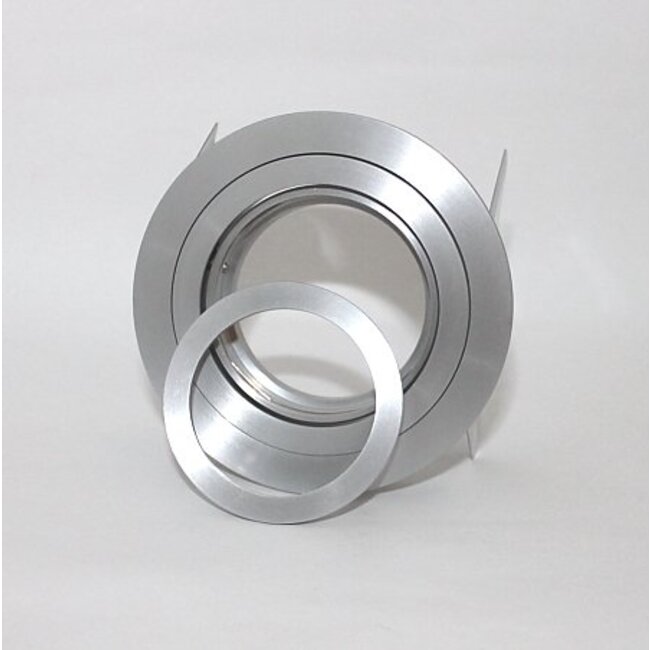

Recessed downlight for GU10 LED lamp. The spot is available with leaf springs or springs. The version with blade springs can be mounted in a concrete ceiling. The version with torsion springs is usually used for lowered or plaster ceiling. The entire inner part of this spot can be pulled down to replace the LED lamp. The LED lamp is fixed with an aluminum clamping ring.

• Available in color WHITE, BLACK and ALUMINUM-MAT
• Sealing class is IP20. Only used indoors.
• Maximum power of 12 watt LED.
• Suitable for type light sources MR16 12v GU5.3 and 230v GU10 halogen lamp or LED lamp and LED
• modules.
• Supplied with GU10 230v lamp holder
• Spot is rotatable through 360 ° and tiltable to 30 °
• Supplied without light source
• Dimmable in combination with a dimmable light source

Dimensions:
diameter: 90mm
mounting hole: 78mm
installation height: from 65mm *

* There are different sizes of LED light sources. The installation height of the luminaire is determined by the light source used.
